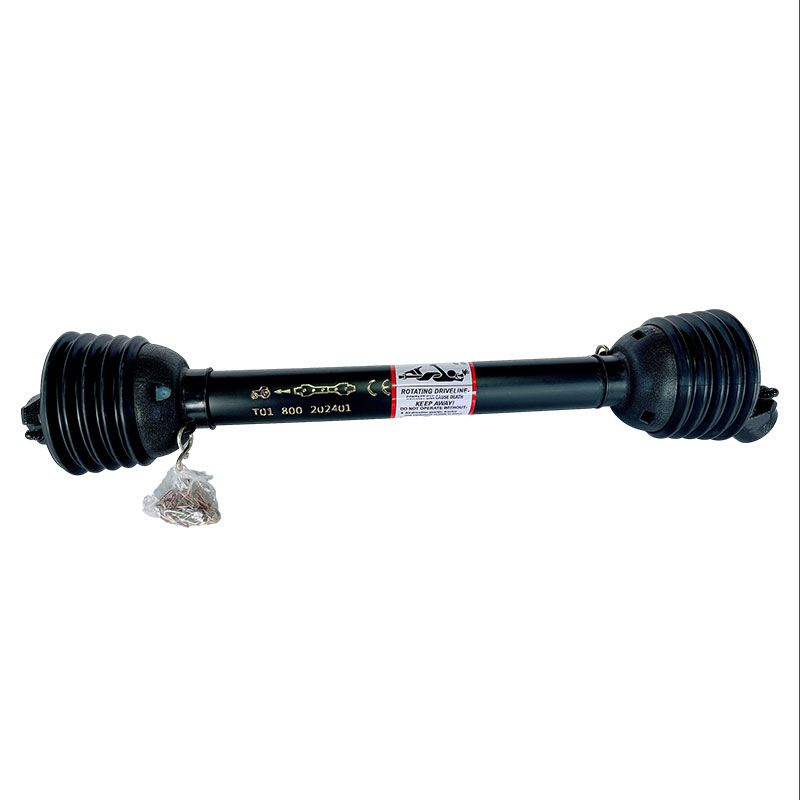

PTO Shaft for Rotary Cutter

Minghua gear made PTO Shaft for Rotary Cutter has been export to South and North America for more than 20 years. The shaft length can be customized as per buyer’s machine need. As a full experience manufacturer of PTO shaft we had hundreds of models for your choose. Welcome contacts us for any OEM needs.

Send Inquiry

Product Description

Minghua gear PTO Shaft for Rotary Cutter is widely used in agriculture machinery.

The mechanical part that moves power from the tractor to the rotary cutter is called a PTO shaft. It makes it possible for the tractor's engine to power the cutter, allowing it to chop or shred grass.

This shaft is straightforward and has universal joints on both ends. Power is transferred linearly by it.

Data PTO Shaft for Rotary Cutter

PTO shaft configuration	Complete assembly
PTO shaft length	800mm can extend to 1050mm.
Series number	Series 1
Tractor end	1-3/8 inch 6 teeth spline, female
Implement end	1-3/8 inch 6 teeth spline, female
Rotate speed	16HP at 540RPM, 24HP at 1000RPM
Sheild cover	Available

Feature of PTO Shaft for Rotary Cutter

Regular PTO Shaft: This kind of shaft is straightforward and has universal joints on both ends. Power is transferred linearly by it.

Constant Velocity (CV) PTO Shaft: By utilizing constant velocity joints, this type reduces vibrations and power loss. Heavy-duty rotary cutters and powerful tractors benefit most from it.

PTO shafts are available in different lengths to suit a range of tractor and cutter combinations.

To avoid mishaps, PTO shafts ought to be equipped with safety measures like guards or shields. To prevent operators from becoming entangled, these shields are placed over the rotating shaft.

As you connect or disconnect the PTO shaft, pay attention to safety precautions. This could entail putting the tractor in park, making sure the cutter is stationary, and making use of the appropriate safety gear.

Details PTO Shaft for Rotary Cutter

For use in varying application sizes, this series 1 PTO shaft has two lengths: an extended length and a retracted length. The length when retracted is 31.49 inches, and the length when extended safely is 41.33 inches. At 540 RPM, it has a PTO horsepower of 16 and at 1000 RPM, respectively. It transfers power through rotation. Additionally, each end has safety chains that fasten to the PTO shaft's outside. Make sure to protect any additional rotating parts as a crucial safety precaution. Also, avoid wearing any loose accessories as they could get tangled and pulled into the rotary cutter machine.
