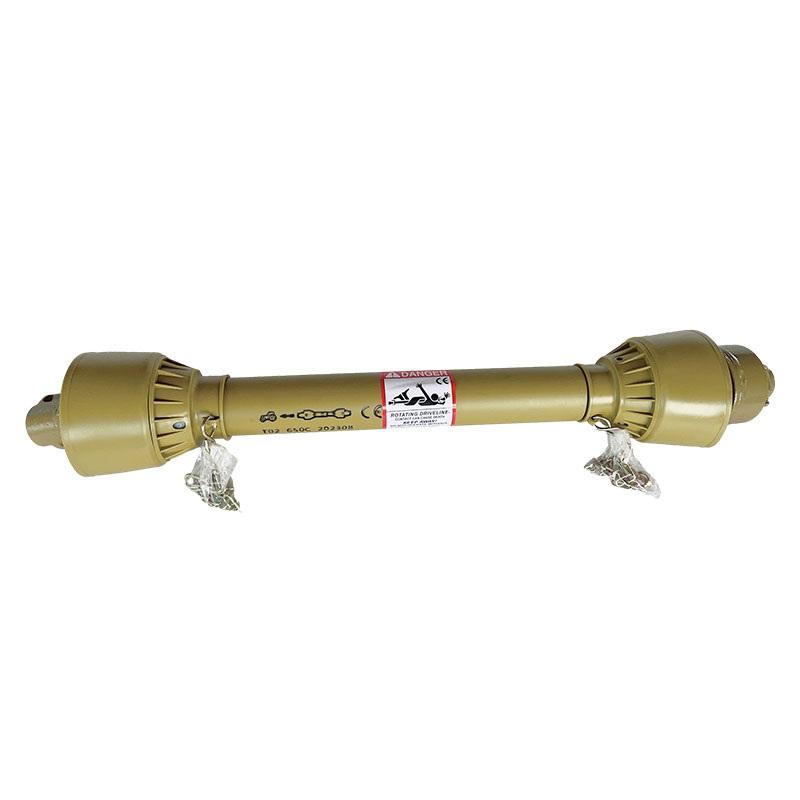

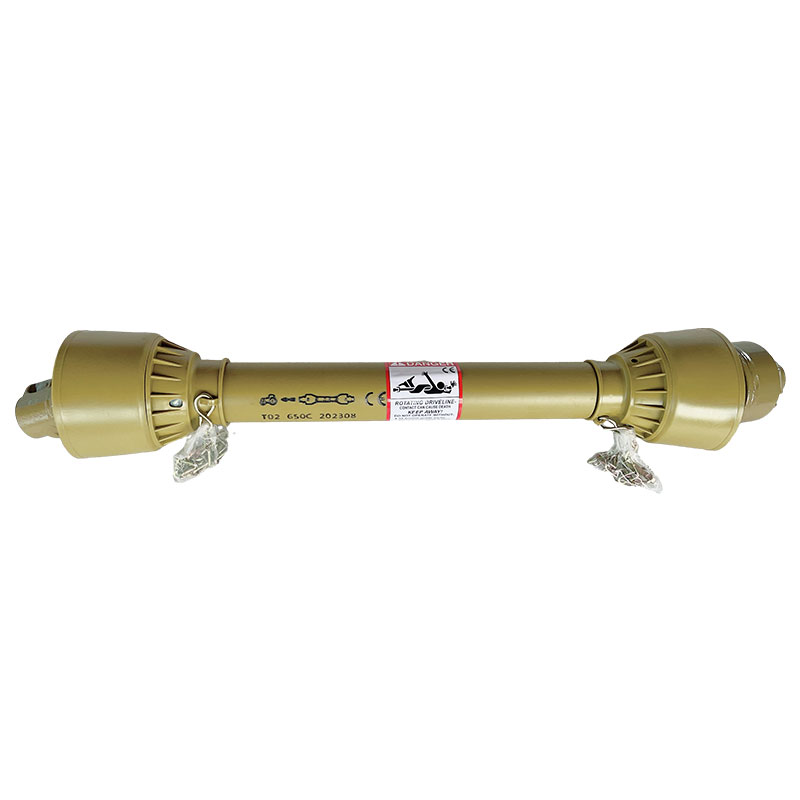

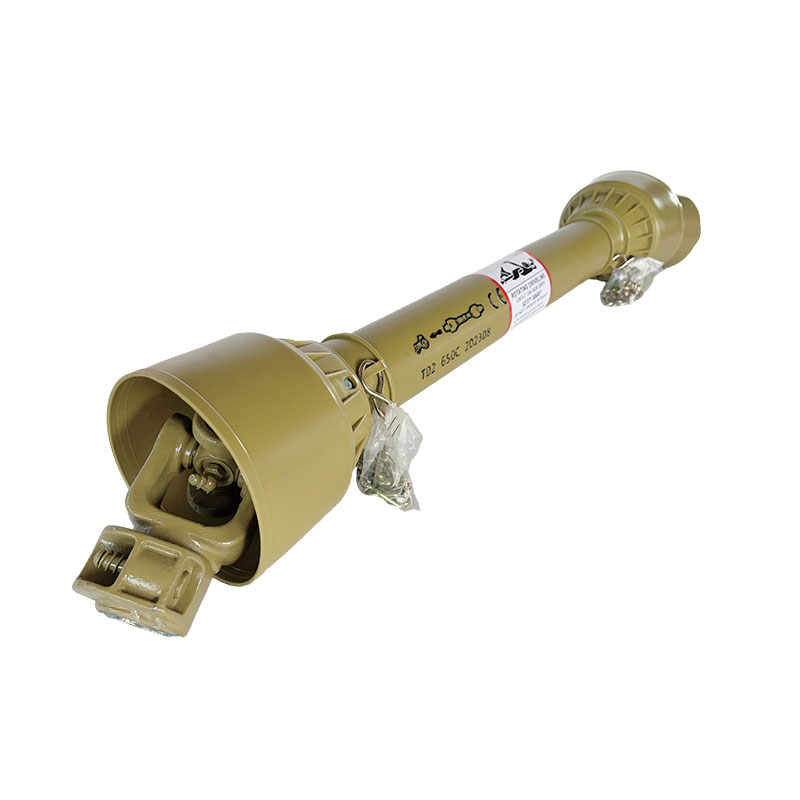

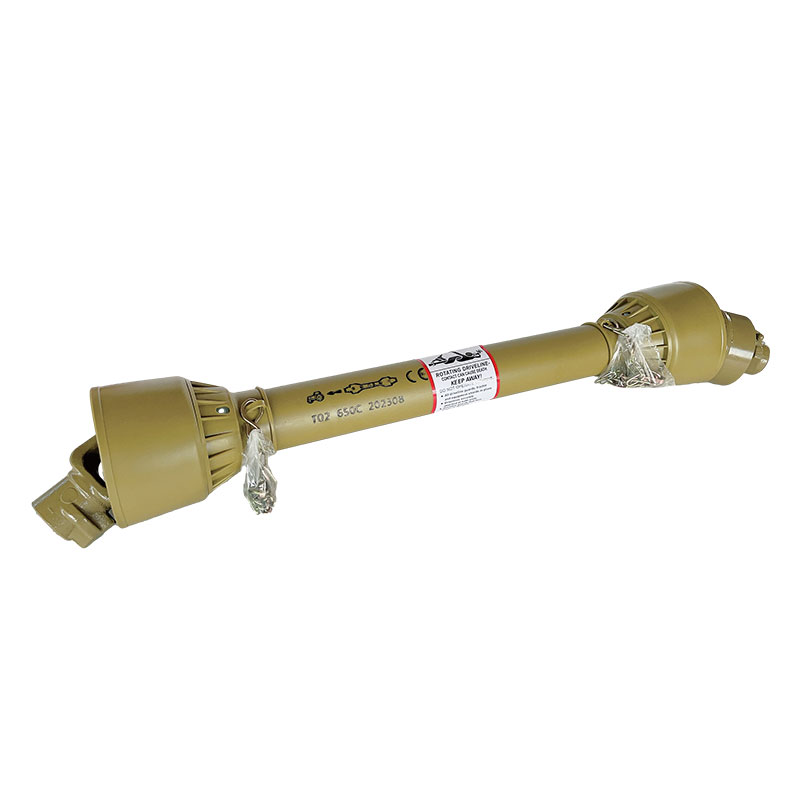

PTO Driveline Shafts for Mower
  • PTO Driveline Shafts for Mower - 0 PTO Driveline Shafts for Mower - 0
  • PTO Driveline Shafts for Mower - 1 PTO Driveline Shafts for Mower - 1
  • PTO Driveline Shafts for Mower - 2 PTO Driveline Shafts for Mower - 2
  • PTO Driveline Shafts for Mower - 3 PTO Driveline Shafts for Mower - 3
  • PTO Driveline Shafts for Mower - 4 PTO Driveline Shafts for Mower - 4

PTO Driveline Shafts for Mower

Minghua Gear has been producing PTO Driveline Shafts for Mower more than 30 years. We’re a reliable international manufacturer of gear transmission products from China. For your application, we work hard to provide the best possible quality and dependability in our products. Discover today and take advantage of our premium products, affordable costs, and thoughtful OEM service!

Send Inquiry

Product Description

Minghua Gear has been producing PTO Driveline Shafts for Mower more than 30 years.


Mowers with PTO driveline shafts can mow grass and other foliage more effectively by transferring power from the tractor to the mower blades. An inner and outer yoke, a splined shaft, and universal joints make up the PTO driveline shaft.


Minghua Gear produces a wide variety of PTO drive shafts.


PTO Driveline Shafts for Mower Data

Tube length

580mm, 890mm,1000mm,1050mm or Customized

Cross joint diameter

FromΦ22 toΦ41

Operation speed

540rpm, 1000rpm

Working power

12Kw to 108Kw

Loading torque range

210Nm to 1918Nm


PTO Driveline Shafts for Mower Feature And Applications

The PTO shaft offers a number of benefits and functions, such as:


Length: PTO driveline shafts for lawn mowers are normally available in 48 and 66-inch lengths.


Torque capacity: The torque capacities that PTO driveline shafts for mowers can handle range from 13 Nm to 185 Nm (10 to 136 lb-ft).


Compatibility: To maximize performance and guard against equipment damage, make sure the PTO driveline shaft is compatible with the mower gearbox and the tractor's PTO.


Mower PTO driveline shafts are utilized in many landscaping and agricultural applications. They are frequently utilized with finishing mowers, grooming mowers, rotary mowers, flail mowers, and several other kinds of mower attachments.


PTO Driveline Shafts for Mower Details Display

PTO drive shafts usually consist of multiple parts that cooperate to convey tractor power to the attached implement. These are the principal elements:


Universal joints, also known as U-joints, enable the PTO drive shaft to bend and move in multiple planes by joining the splined shaft to the outer yoke and the inner yoke to the splined shaft.


Inner yoke: An essential part of the driveline assembly, the inner yoke fastens to the tractor's PTO shaft.


Outer yoke: An essential part of the driveline assembly, the outer yoke is attached to the implement's input shaft.


Grease fittings: Grease fittings facilitate the lubrication of U-joints and bearings to lessen wear and encourage smooth operation.


Product video.
