Post Hole Digger Gearbox for Agricultural Tractor

Minghua gear made Post Hole Digger Gearbox for Agricultural Tractor is hot welcomed in auger machinery. We at Minghua Gear are proud to be a top producer of agricultural gearboxes of the highest caliber, built to maximize the performance of farm equipment. Our unwavering dedication to innovation, robustness, and accuracy has enabled us to establish ourselves as a reliable collaborator for farmers and agricultural equipment manufacturers across the globe. View our extensive selection of agricultural gearboxes, which includes, but is not limited to: Gearboxes for tractors, Mix and Match Harvester Gearboxes, Gearboxes for seed drills, Gearboxes for Irrigation Systems

Send Inquiry

Product Description

Minghua gear manufactured Post Hole Digger Gearbox for Agricultural Tractor.


Our post-hole digger gearboxes are painstakingly made to satisfy the exacting specifications of different kinds of soil. Our gearboxes guarantee optimal performance by prioritizing durability, power transmission, and user-friendliness, thereby facilitating post-hole digging in a smooth and efficient manner.


Our gearboxes are designed to be versatile, making them suitable for a variety of post hole digging applications, such as installing fences or planting trees. They can be adjusted to suit various types of equipment and offer the torque and dependability required to complete the task correctly each and every time.


Data Post Hole Digger Gearbox for Agricultural Tractor

Gearbox housing material

Ductile iron QT450-10

Gear material

20CrMnTi steel

Bearing Type

Tapered, Ball, Needle bearings

Gear Type

Straight bevel gears

Gear Ratios

4:1

Torque

208Nm

Net weight

44.16kg


Feature of Post Hole Digger Gearbox for Agricultural Tractor

High Torque for Effective Digging

With auger attachments, our gearbox's high torque output guarantees effective and potent excavation performance.


Sturdy Construction for Vigorous Use:

Our gearbox is made with strong materials to endure the demanding conditions of auger excavation in a variety of soil types, all while keeping longevity in mind.


Ideal Gear Ratios to Increase Auger Efficiency:

In order to maximize the auger's efficiency, the gear ratios are carefully adjusted to provide the right rotational speed and torque for efficient soil penetration.


Adaptability in Auger Dimensions:

Our gearbox is adaptable to various auger sizes, making it suitable for a variety of excavation tasks and soil types.


Details Post Hole Digger Gearbox for Agricultural Tractor

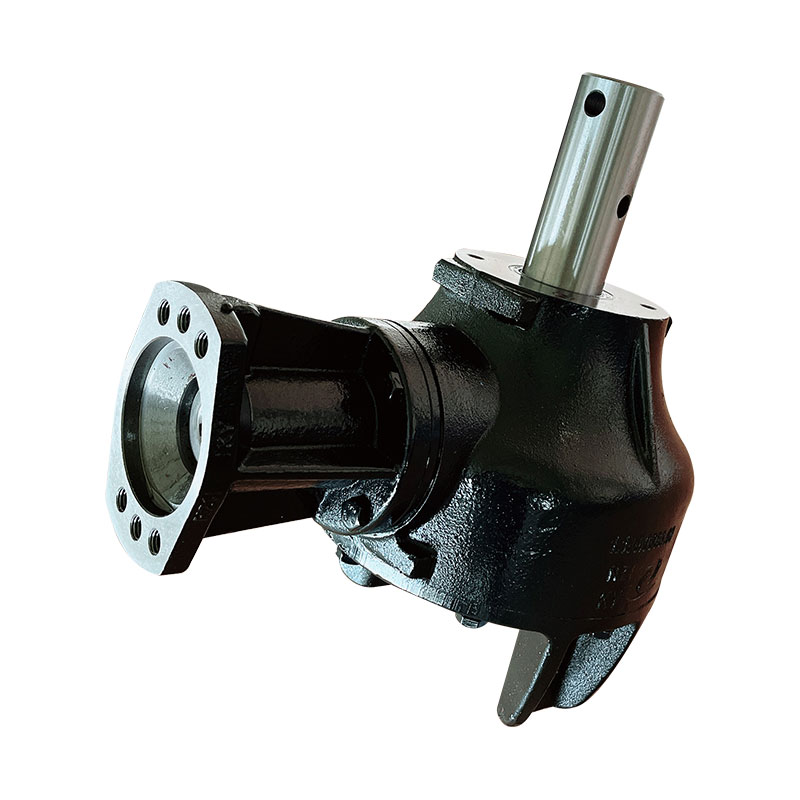

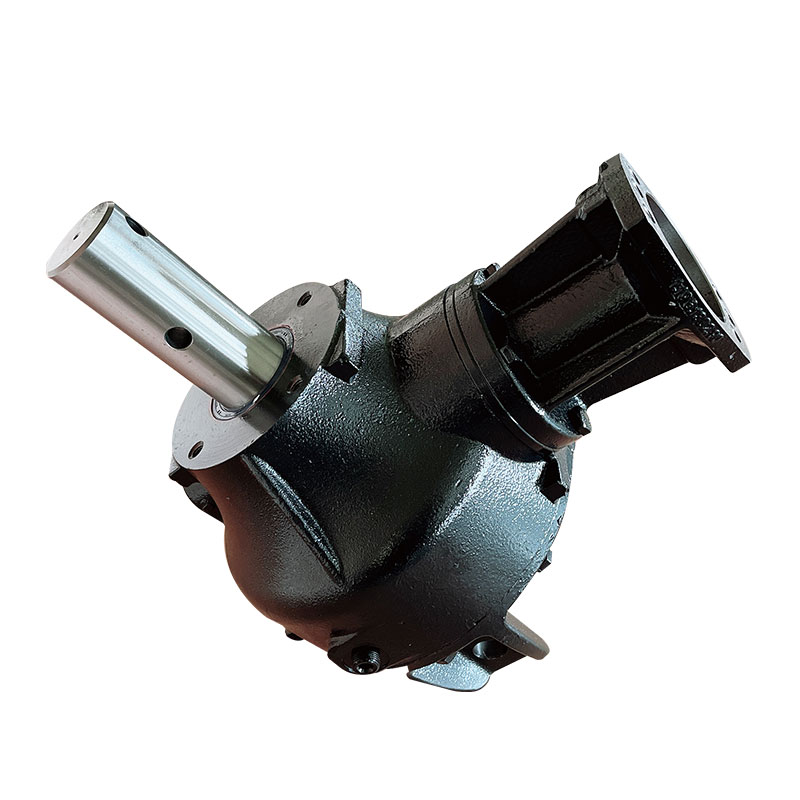

Vertical right-angle gearbox L196J.


Originally produced for tapered roller bearings and PTO-driven posthole digger systems.


Tri-lip seals with a spring mechanism.


A clockwise input rotates the output in a clockwise direction.


Housing made of cast iron. designed with a 7/8" diameter pin at the top of the gearbox housing to allow it to hang freely from a supporting structure or boom.


To mount the input shaft shield, four 3/8"-16 tapped holes on a 3-3/8" diameter B.C. and four 3/8"-16 tapped holes on a 4-1/8" diameter B.C. are needed.
